Blower

HomeProductsCombustion Equipment • Blower

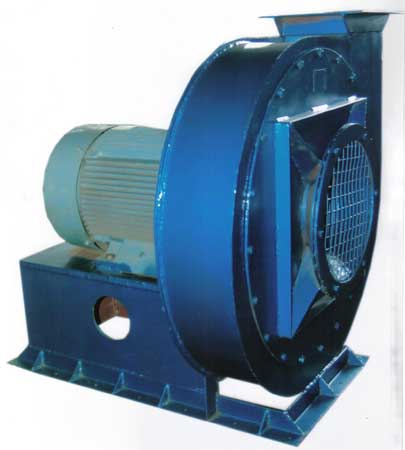

Blower

We provide Blower that is efficiently designed to render excellent CFM volume pressure air ensuring low power consumption. The Fuel Save Centrifugal Steel Plate Air Blowers are constructed to supply air to combustion system, which can be applied where low pressure air is required. The impellers fitted in the Blower are well-balanced before assembly. Furthermore, the Blowers are equipped with Squirrel Cage, TEFC, and Induction Motors of reputed makes such as ABB, NGEF, Crompton, Kirloskar, etc. There are options available for direct drive/shaft driven through "V" Belts.

Features
  • Rigid construction
  • Statically and dynamically balanced
  • Field adjustable discharge position
  • Noiseless operation
Specifications
  • Capacity range : 3 HP-150 HP
  • Pressure : 6" w.g-48" w.g.

Technical Specifications

Model HP CFM NM3/Hr. Pressure
40/5 5 400 680 40" w.g
40/7.5 7.5 600 1020 40" w.g
40/10 10 800 1360 40" w.g
40/15 15 1200 2040 40" w.g
40/20 20 1600 2720 40" w.g
40/25 25 2000 3400 40" w.g
40/30 30 2400 4080 40" w.g
40/40 40 3200 5200 40" w.g
40/50 50 4000 6800 40" w.g
40/60 60 4800 8100 40" w.g
40/75 75 6000 10000 40" w.g
40/100 100 8000 13600 40" w.g
40/125 125 10000 17000 40" w.g
40/150 150 12000 20000 40" w.g
